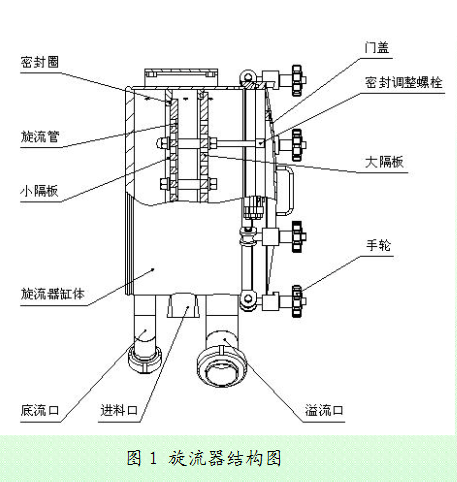

The main purpose of multistage rotary flow station is to remove soluble and insoluble protein, fine fiber and sugar to purify starch milk. It is the key equipment for concentrating, washing and refining starch. The main body of the equipment is made of sanitary mirror stainless steel to ensure that the materials are not corroded, the surface of the equipment is treated with special process, and the oil resistance is dirty. The swirl tube is made of nylon and high strength fiber, high energy and high efficiency; Multistage hydrocyclone station set enrichment, separation and recycling, washing and fine slag a variety of functions in one, simple and reasonable, beautiful and easy, stable product quality, is popular among large and medium-sized enterprises starch, is he company's cooperation with the international advanced technology to produce high quality products. Second, the structure and principle of cyclone (chart) level station consists of cyclone and starch pump assembly, the number of level rotary flow station knitting together scientifically, to jointly complete concentration, recycling, washing and other refined, such several stage cyclone stand for multi-stage cyclone stand. The cyclone assembly consists of a swirler cylinder, a door cover, a sealing adjustment bolt, a large bulkhead, a small bulkhead, a handwheel, a top runner (overflow mouth), a feed inlet, a bottom flow port, Ο Type sealing ring, swirl tube (a dozen to hundreds), etc., the cylinder body is separated by the separator into the feed, the overflow and the bottom flow three Chambers, and is sealed by o-ring seal.
